34.5KV 65A BIL200KV ANSI High Voltage Transfomer Porcelain Bushing
- Details
The Threaded Bushings for voltage of 34.5kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. The barriers and spacers are enclosed in a skirted porcelain shell that is filled with oil. Condenser bushings are similar except that the central rod is wound with alternating layers of insulation and foil. This results in a path from the conductor to the case consisting of a series of condensers. The layers are designed to provide an approximately equal voltage drop between each condenser. In some condenser bushings, the whole bushing is enclosed in a skirted porcelain shell. Other types have only the exposed part of the bushing enclosed in the porcelain shell.
1.Material: porcelain insulator
2.Glaze color: light gray
3.Rated voltage: 34.5KV BIL:200KV
4.Rated current: 65A
5.Standard: ANSI
Our Advantage
* High voltage
* Good strength
* Good insulating properties
* Lightning-withstand
* Anti-corrosion
* Rustproof
* Mature brass processing
* Using bright tin makes it not easy to be scratched
| Rated Voltage | Rated Current | Creep Distance | Impulse Level | Wet withstand Voltage | Tank Hole Diameter | Porcelain Color | |||
| 34.5kv | 65A | ≥774mm | 200kV | 95kV | 71.2mm | gray | |||

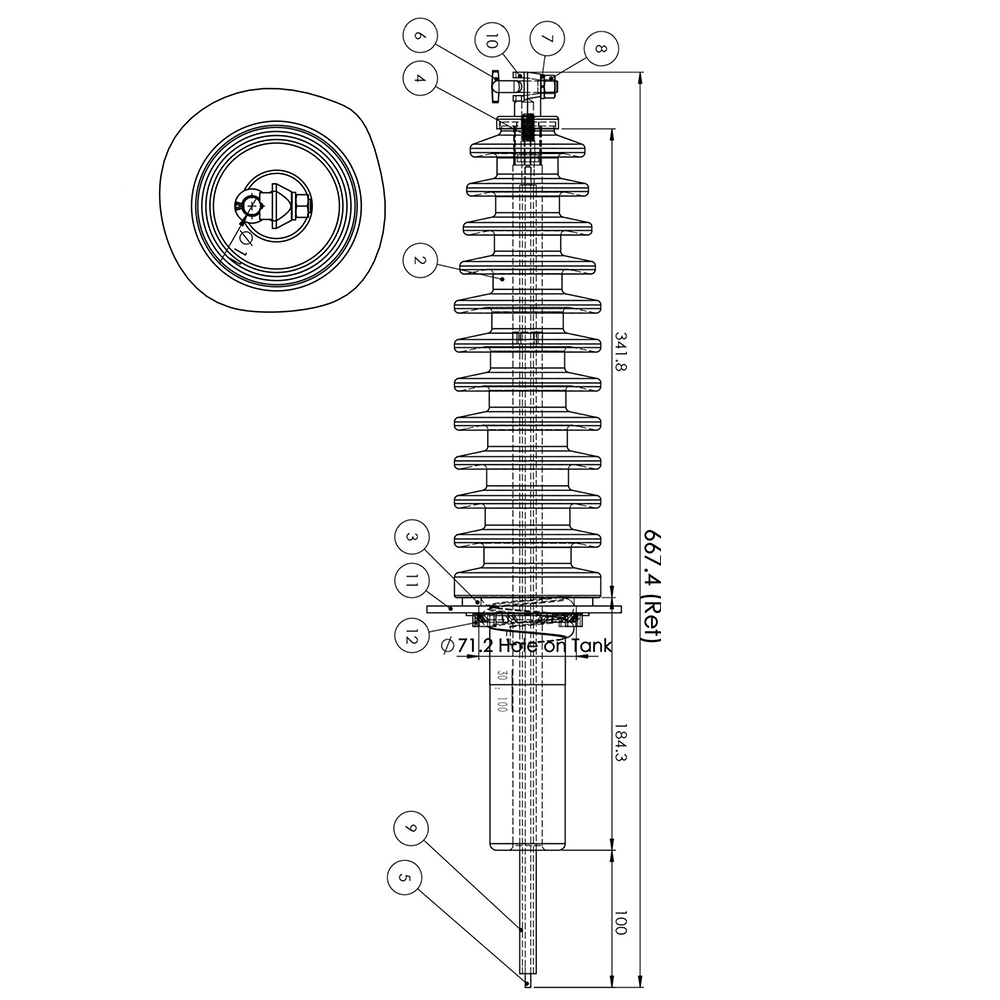

| ITEM | DESCRIPTION | QTY | MATERIAL | ||||||
| 1 | Plain gasket 40X16X3 | 1 | NBR | ||||||
| 2 | Flange gasket NBR 95X68X6 | 1 | NBR | ||||||
| 3 | Locking Bolt 3/8"-16(Tube) | 1 | Copper | ||||||
| 4 | Eye Bolt(φ11) | 1 | Brass Forging | ||||||
| 5 | Bare soft copper wire(#8 AWG 19X0.95L=598) | 1 | Copper | ||||||
| 6 | Transformer tank(φ71.2)Internally mounted type | 1 | Not in scope of supply | ||||||
| 7 | GNY 7917 34.5kV Porcelain bushing | 1 | Porcelain | ||||||
| 8 | Paper Tube(φ12Xφ8L=575) | 1 | Paper | ||||||
| 9 | AS0081 Teminal-3/8"-16(S=19) | 1 | Brass Forging | ||||||
| 10 | 65250-06 Flange of spiral | 1 | Steel | ||||||
| 11 | washer 3/8" | 1 | Stainless steel ANSI 304 | ||||||
| 12 | Steel nut 3/8"-16 | 1 | Stainless steel ANSI 304 | ||||||
