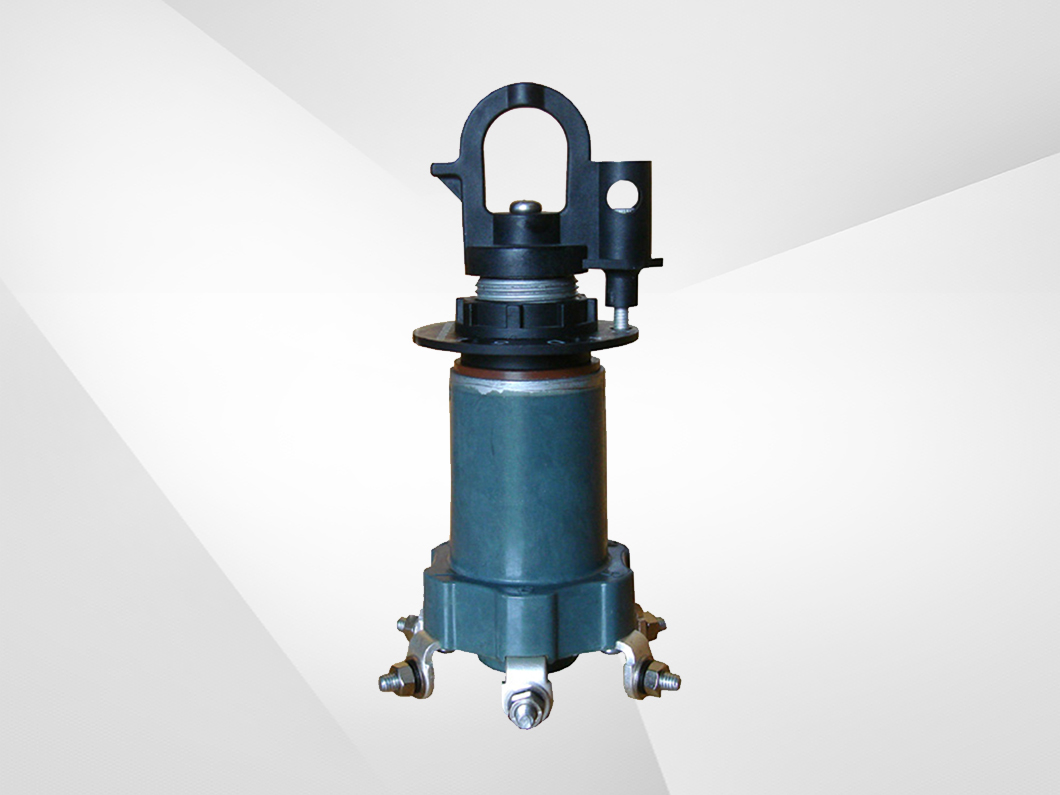

This series of tap changers is suitable for oil-immersed power transformers with a frequency of 50Hz, a rated voltage of 10KV to 35KV, and a rated current of 63A to 250A. When the voltage needs to be adjusted, the transformer must be disconnected from the network. Make the transformer change the number of turns of the primary coil of the transformer under the condition of non-excitation, so as to realize the purpose of adjusting the voltage of the transformer. To achieve the purpose of adjusting the secondary output voltage

Type WSTZH3 three phase-tap changer(series-paralel/delta connection)

- Used in mineral oil or silicon oil

- Rated Voltage 10KV-36KV

- Rated current from 400A-500A

- Tapping position: 3-5

- Regulation 2.5% per position

Model Explanation
WST □ - □/□-□X□

W: off-circuit
S : three-phase or D for single phase
T : linear type tap changer
□: voltage regulation model
□: rated current
□: rated voltage
□: number of tapping heads
□: number of tapping position

Voltage Regulation Model
I : terminal point
II : central point
III : neutral point
IV : Y-△ conversion
V : series-parallel connection

Our Advantage

* High pressure capability
* Strong anti-aging ability
* Strong anti-lightning impact
* Strong protection
* Use smoothly
* Stable use

Number of positions	Rated Voltage	Rated Current	NO Of Phases	φD1	L	H	Md	φD
WSPⅢ163/10-3×3C	10	63		80	67	75	M6	110
WSPⅢ163/10-3×3CD(double seal)		63		80	67	82	M6	110
WSPⅢ1125/10-3×3C		125		80	67	75	M8	120
WSPⅢ1125/10 3×3CD(double seal )		125		80	67	82	M8	120
WSP1250/10-3×3		250		80	67	94	M8	154
WSPⅢ163/10-5×5		63		80	67	75	M6	163
WSPⅢ1125/10-5×5		125		80	67	75	M8	168
WSPⅢ1250/10-5×5		250		80	67	96	M8	206
WSPⅢ163/10-7×7		63		80	67	75	M6	215
WSPⅢ1125/10-7×7		125		80	67	75	M8	215
WSPIII163/20-3×3	20	63		80	67	95	M6	110
WSPI1125/20-3×3	20	125		80	67	95	M8	120
WSPIⅢI163/35-3×3	35	63		80	67	126	M6	135
WSPI1125/35-3×3		125		80	67	126	M8	135
WSPIⅢ163/35-5×5		63		105	75	130	M6	200
WSPII1125/35-5×5		125		105	75	130	M8	200
WSPⅡ163/10-4×3	10	63	3	80	67	83	M6	162
WSPⅡ1125/10-4×3		125		80	67	83	M8	165
WSPⅡ1250/10-4×3		250		80	67	83	M8	165
WSPⅡ163/10-6×5		63		80	67	83	M6	192
WSPⅡ1125/10-6×5		125		80	67	83	M8	196
WSPⅡ1250/10-6×5		250		80	67	85	M8	280
WSPIV163/10-3×2(Y-△)		63		80	67	83	M6	162
WSPIV1125/10-3×2(Y-△)		125		80	67	83	M8	165
WSPIV1250/10-3×2(Y-△)		250		80	67	83	M8	165
WSPⅡ163/20-4×3	20	63		80	67	98	M6	173
WSPⅡ1125/20-4×3		125		80	67	98	M8	177
WSPⅡ163/20-6×5		63		80	67	103	M6	232
WSPⅡ1125/20-6×5		125		80	67	103	M8	236
WSPⅡ163/35-4×3	35	63		80	67	120	M6	225
WSPⅡ1125/35-4×3		125		80	67	120	M8	225
WSPⅡ1250/35-4×3		250		80	67	120	M8	225
WSPⅡ163/35-6×5		63		105	75	120	M6	278
WSPⅡ1125/35-6×5		125		105	75	120	M8	278
WSPⅡ1250/35-6×5		250		105	75	120	M8	278
WDPⅡ163/10-4×3	10	63		80	67	75	M6	110
WDPⅡ1125/10-4×3		125		80	67	75	M8	120
WDPⅡ163/10-6×5		63		80	67	75	M6	110
WDPⅡ1125/10-6×5		125		80	67	75	M8	120
WDPⅡ163/35-4×3	35	63	1	80	67	130	M6	176
WDPⅡ163/35-6×5		63		80	67	130	M6	176
WDPⅡ163/35-8×7		63		80	67	130	M6	176
WDPⅡ163/35-10×9		63		80	67	130	M6	176
WDPⅡ1125/35-4×3		125		80	67	130	M8	176
WDPⅡ1125/35-6×5		125		80	67	130	M8	176
WDPⅡ1125/35-8×7		125		80	67	130	M8	176
WDPⅡ1125/35-10×9		125		80	67	130	M8	176
WDPⅡ1250/35-4×3		250		80	67	130	M8	176
WDPⅡ1250/35-6×5		250		80	67	130	M8	176
WDPⅡ1250/35-8×7		250		80	67	130	M8	176
WDPⅡ1250/35-10×9		250		80	67	130	M8	176
※WSPⅡ163/10-8×7	10	63	3	105	75	83	M6	277
※WSPⅡ1125/10-8×7	10	125	3	105	75	83	M8	281
