Details

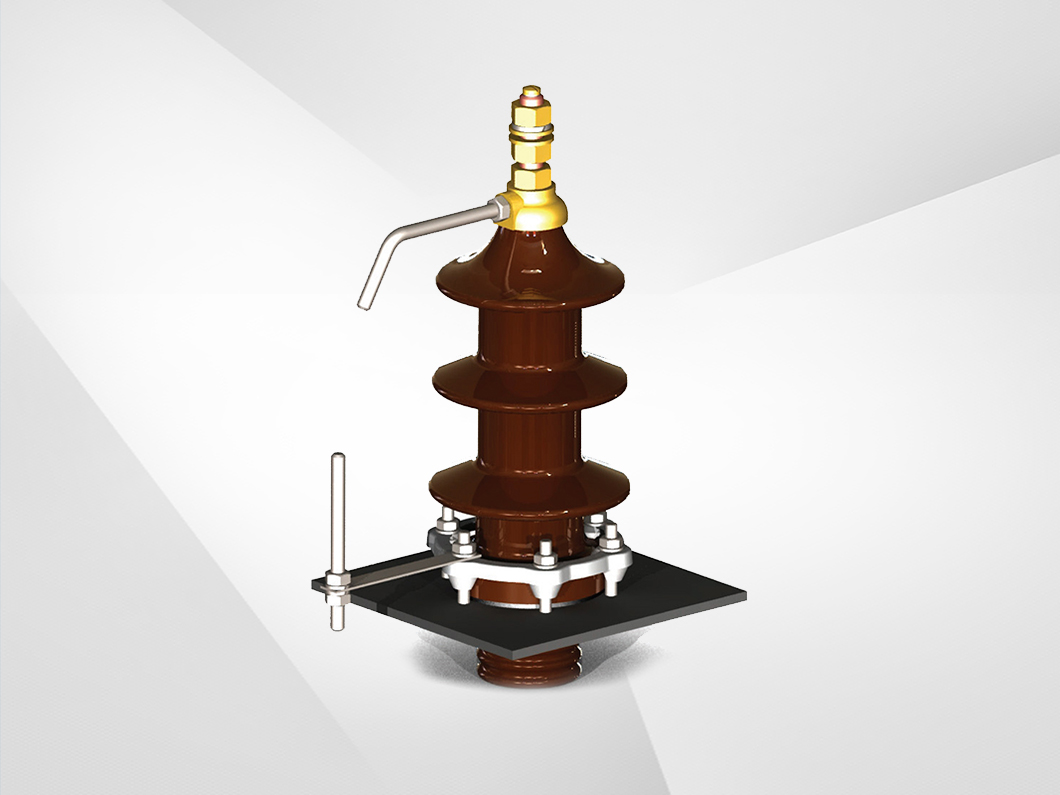

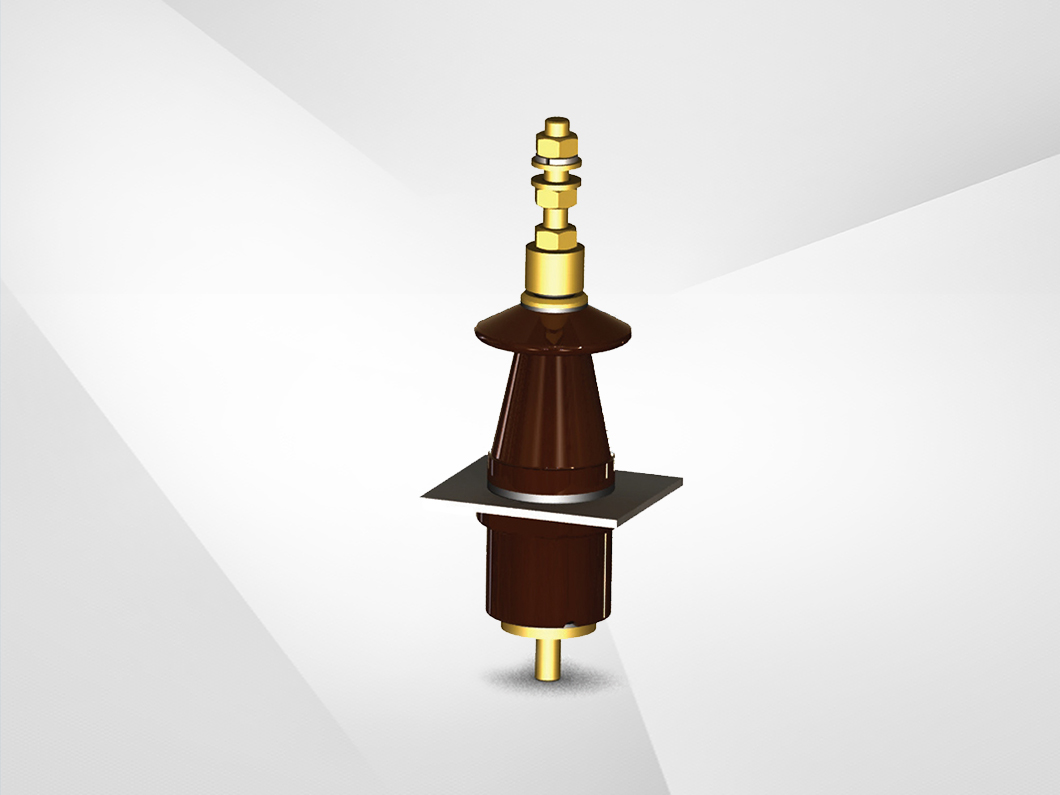

The Threaded Bushings for voltage of 3kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.

High-voltage bushings are either oil-filled or condenser bushings. Oil-filled bushings have a central conducting rod or tube through which the conductor passes. Around this, a series of insulating barriers are held apart by spacers. The barriers and spacers are enclosed in a skirted porcelain shell that is filled with oil. Condenser bushings are similar except that the central rod is wound with alternating layers of insulation and foil. This results in a path from the conductor to the case consisting of a series of condensers. The layers are designed to provide an approximately equal voltage drop between each condenser. In some condenser bushings, the whole bushing is enclosed in a skirted porcelain shell. Other types have only the exposed part of the bushing enclosed in the porcelain shell.

1.Material: porcelain insulator

2.Glaze color: Brown

3.Rated voltage: 3KV

4.Rated current: 250-630A

5.Standard: DIN

Our Advantage

* Good strength

* Good insulating properties

* Lightning-withstand

* Anti-corrosion

* Rustproof

* Mature brass processing

* Using bright tin makes it not easy to be scratched

Pos. No.	Description	Material	250A Pcs.	630A Pcs.
12	Arcing horn holder	A2	1	1
13	Hexagon nut	A2	3	3
14	Spring Lock Washer	A2	2	2
15	Flangering	Al	1	1
16	Press bit	G-ZnA16Cul	4	6
17	Washer	A2	4	6
18	Hexagon nut	A2	4	6
19	Gasket J	NBR	1	1
20	Flat gasket N	NBR	1	1
21	Gasket 0	Pressspan	1	1

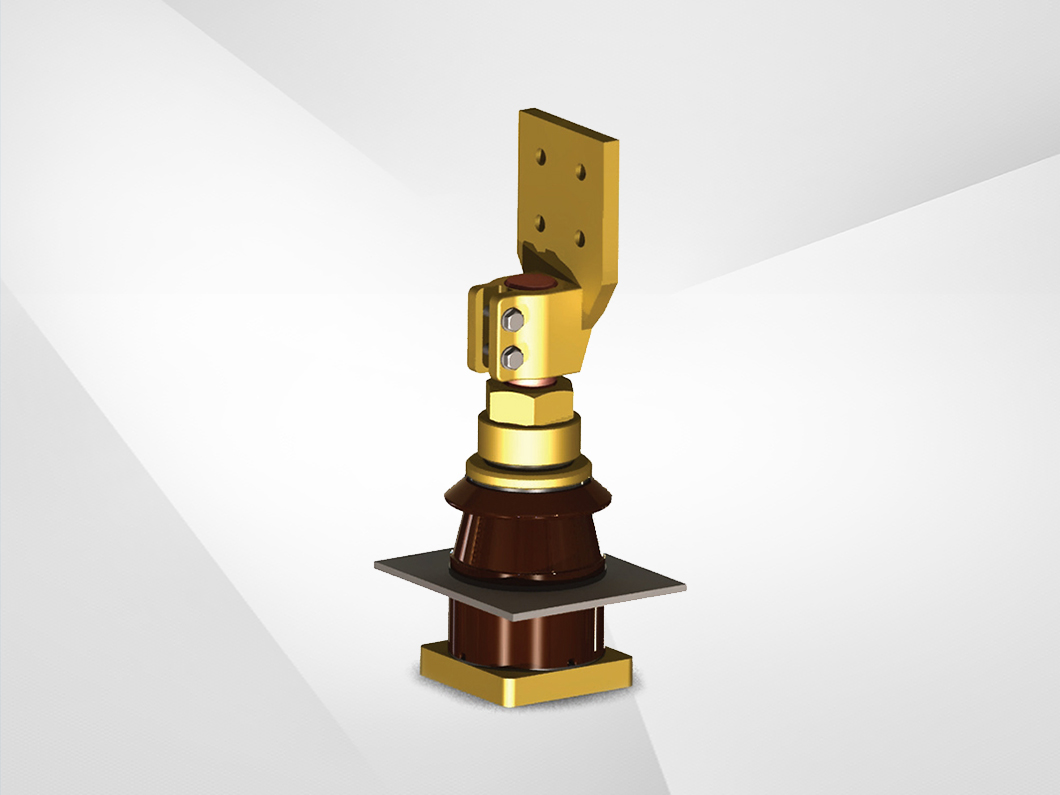

Type	a mm	b mm	d1	d3 mm	d4 mm	d5 mm	e mm	f mm	I1 mm	Weight kg
DT 10 NF 1000	455	158	M30x2	110	100	163	239	148	541	152
DT 20 NF 1000	530	168		110	100	163	314	148	626	182
DT 30 NF 1000	635	198		110	100	163	419	148	756	219
DT 10 NF 2000	530	158	M42x3	135	120	183	239	178	616	249
DT 20 NF 2000	605	168		135	120	183	314	178	701	29
DT 30 NF 2000	710	198		135	120	183	419	178	831	347
DT 10 NF 3150	560	158	M48x3	135	120	183	239	183	646	285
DT 20 NF 3150	635	168		135	120	183	314	183	731	326
DT 30 NF 3150	740	198		135	120	183	419	183	861	388
DT 52 NF 1000	725	253	M30x2	135	120	183	509	148	901	352
DT 52 NF 2000	800	253	M42x3	135	120	183	509	178	976	449
DT 52 NF 3150	830	253	M48x3	135	120	183	509	183	1006	492

Pos. No.	Description	Material	10-30 NF 1000-3150 Pcs.	52 NF 1000-3150 Pcs.
1	Unteres Funkenhorn	A2	1	1
2	arcing horn holder	A2	1	1
3	Spring Lock Washer	A2	2	2
4	Hexagon screw	A2	2	2
5	Hexagon nut	A2	2	2
6	Hexagon nut	A2	1	1
7	Flangering	Al	1	1
8	Press bit	G-ZnA16Cul	6	6
9	washer	A2	6	6
10	Hexagon nut	A2	6	6
11	Ring gasket J	NBR	1	1
9	Flat gasket M	NBR	1	1
10	Flat gasket N	NBR	1	1
11	gasket 0	Pressspan	1	1
