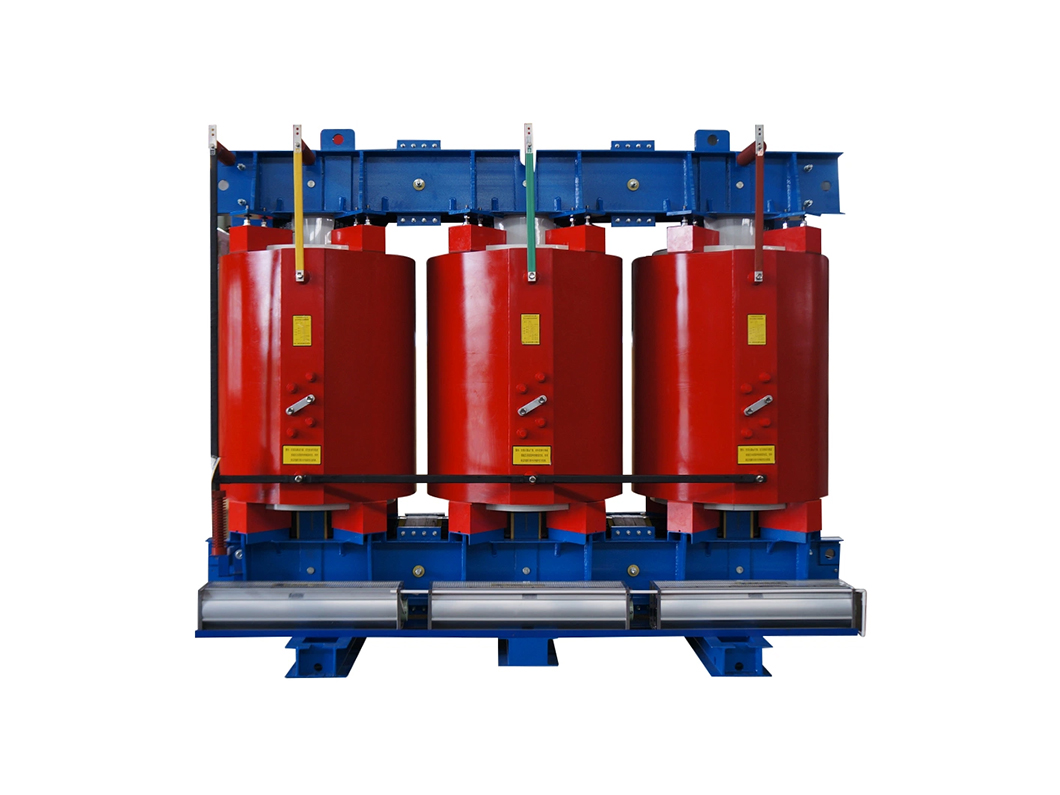

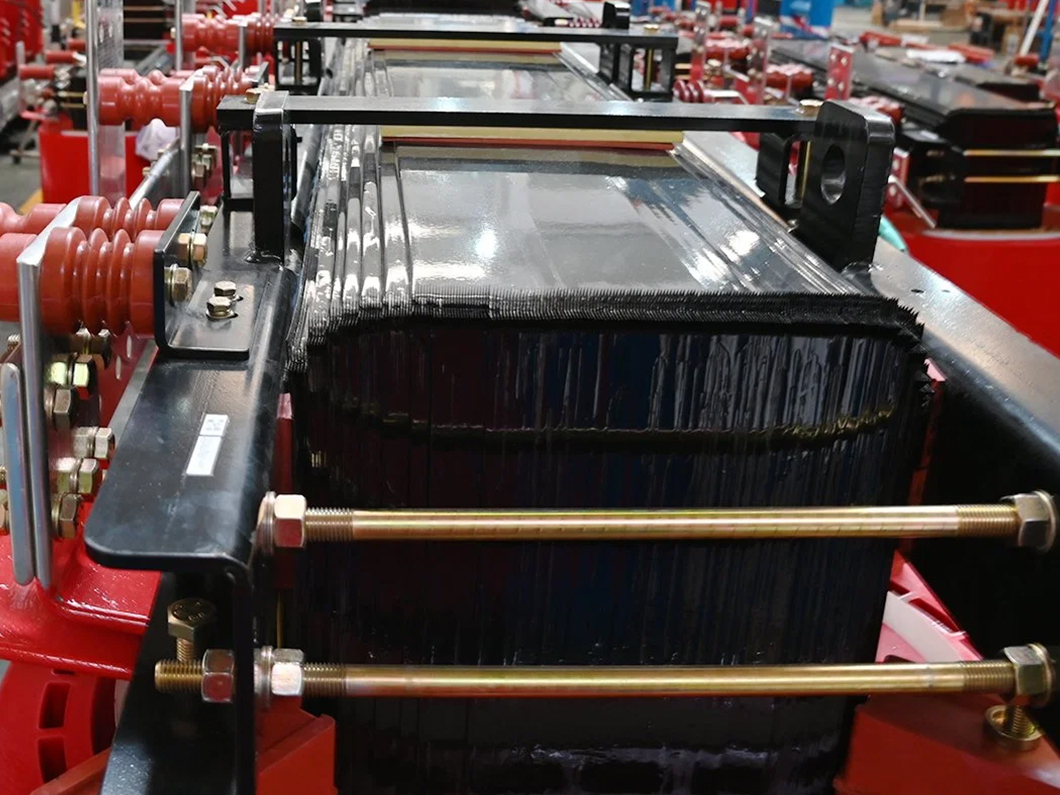

Dry-type Transformer Coil
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

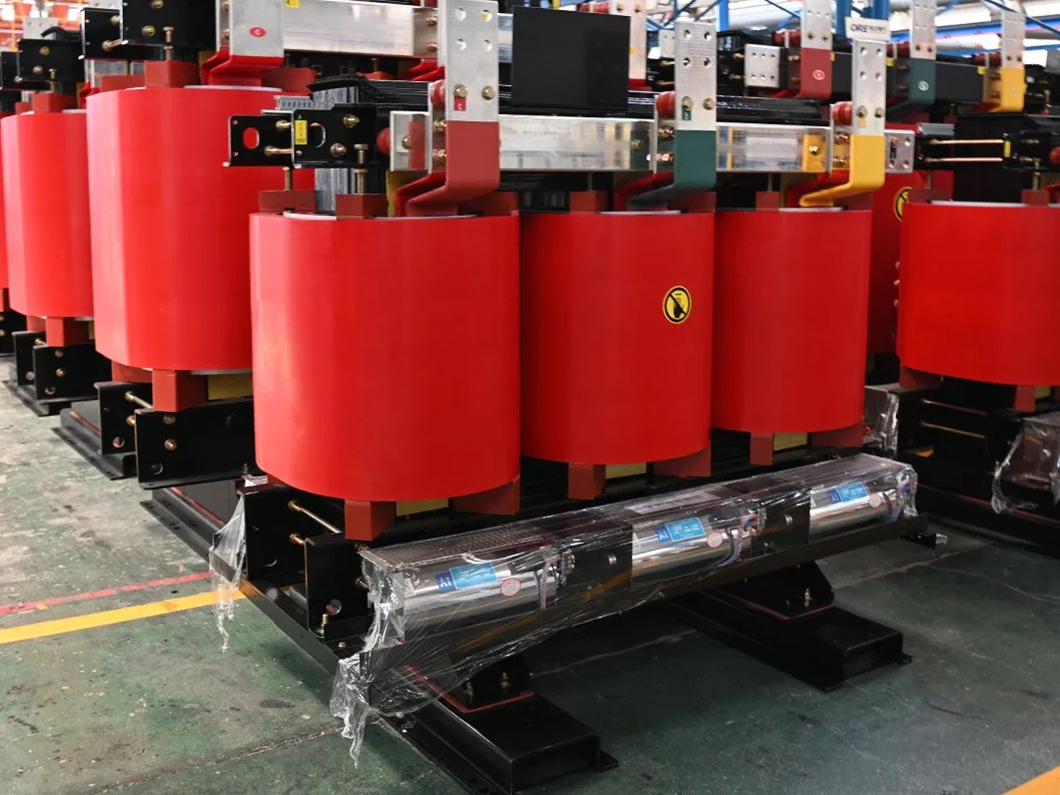

The high and low voltage winding is wound with epoxy resin in vacuum state. After high temperature curing, it forms a solid whole with good mechanical strength and small partial discharge.
Cast resin insulation guarantees secure performance of the transformer with no need for complicated and costly maintenance. Preventive maintenance of cast resin transformers consists in a simple visual check. Low operating costs Low losses in the magnetic core and in the windings reduce the costs of operation. The coils are made with pure copper wire /foil, and encapsulated by high quality epoxy resin.
| Rated capacity (KVA) | HV | LV | Vector Group | No-load current (%) | No-load loss(W) | Load loss(W) | Impedance (%) | ||
| 130ºC(B) | 150ºC(F) | 180ºC(H) | |||||||
| 30 | 6.3 10 11 | 0.4 | dyn11 Yyn0 Dyn5 | 2 | 190 | 670 | 710 | 760 | 4.5 |
| 50 | 2 | 270 | 940 | 1000 | 1070 | ||||
| 80 | 1.5 | 370 | 1290 | 1380 | 1480 | ||||
| 100 | 1.5 | 400 | 1480 | 1570 | 1690 | ||||
| 125 | 1.3 | 470 | 1740 | 1850 | 1980 | ||||
| 160 | 1.3 | 540 | 2000 | 2130 | 2280 | ||||
| 200 | 1.1 | 620 | 2370 | 2530 | 2710 | ||||
| 250 | 1.1 | 720 | 2590 | 2760 | 2960 | ||||
| 315 | 1 | 880 | 3270 | 3470 | 3730 | ||||
| 400 | 1 | 980 | 3750 | 3990 | 4280 | ||||
| 500 | 1 | 1160 | 4590 | 4880 | 5230 | ||||
| 630 | 0.85 | 1340 | 5530 | 5880 | 6290 | 6 | |||
| 800 | 0.85 | 1520 | 6550 | 6960 | 7460 | ||||
| 1000 | 0.85 | 1770 | 7650 | 8130 | 8760 | ||||
| 1250 | 0.85 | 2090 | 9100 | 9690 | 10300 | ||||
| 1600 | 0.85 | 2450 | 11000 | 11700 | 12500 | 8 | |||
| 2000 | 0.7 | 3050 | 13600 | 14400 | 15500 | ||||
| 2500 | 0.7 | 3600 | 16100 | 17100 | 18400 | ||||
