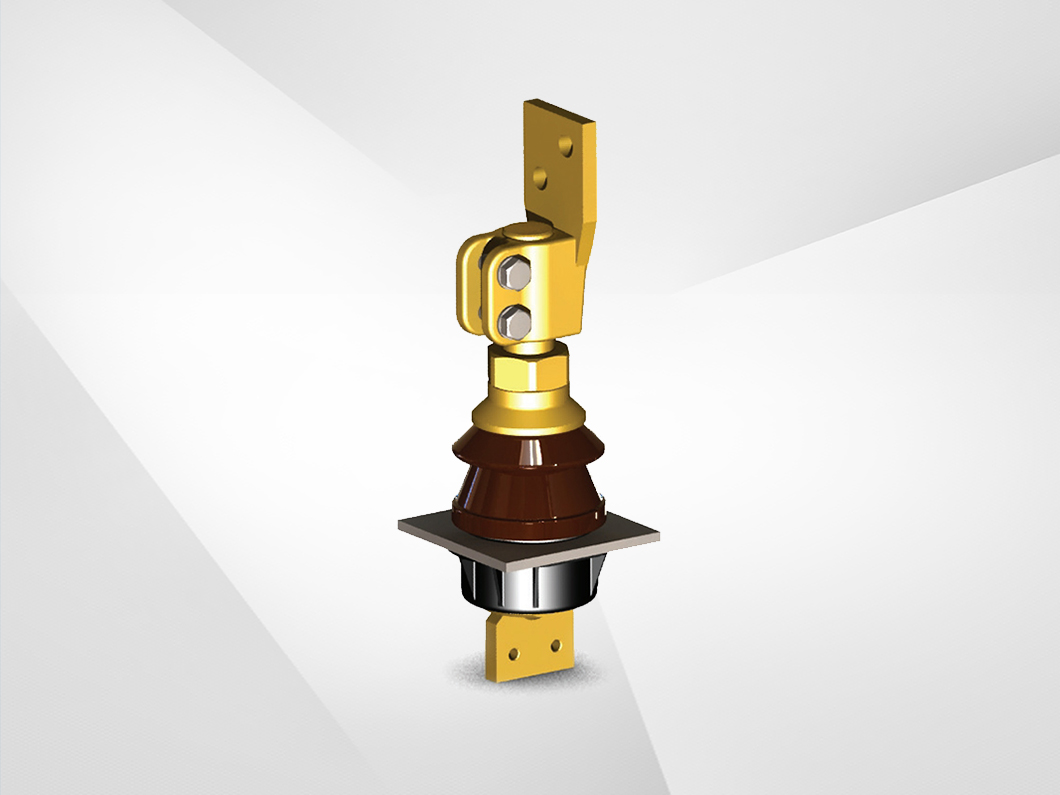

DT 1/3150A Porcelain Insulator Bushing EN50386
- Details
The Threaded Bushings for voltage of 3kV are supplied assembled with the respective porcelain, NBR gaskets, copper threaded rod, blued steel spin grip nut, zinc-plated brass connector and stainless steel lock washer and nut.
Low-voltage transformers with separate leads normally have solid porcelain bushings. These bushings consist of high-grade porcelain cylinders through which the connections pass. The outside surface may be plain or have a series of corrugations or skirts to increase the surface leakage path to the metal case. When the conductors are brought to the transformers in lead-covered cables, the leads often enter through cable terminators. These terminators are similar to ordinary potheads and are attached to the transformer with the bushings inside the case.
1.Material: porcelain insulator
2.Glaze color: Brown
3.Rated voltage: 1KV
4.Rated current: 3150A
5.Standard: DIN
Our Advantage
* Good strength
* Good insulating properties
* Lightning-withstand
* Anti-corrosion
* Rustproof
* Mature brass processing
* Using bright tin makes it not easy to be scratched
| Pos. No. | Description | Material | AP Pcs. | ST Pcs. |
| 1 | Porcelain A | C110 | 1 | 1 |
| 2 | Porcelain B | PA | 1 | 1 |
| 3 | Connecting Bolt ST | Cu-ETP | —— | 1 |
| 4 | AP - Bolt | Cu-ETP | 1 | —— |
| 5 | AP -Washer | CuZn40Pb2 | 1 | —— |
| 6 | Cap | CuZn40Pb2 | 1 | 1 |
| 7 | Hexagon Nut | CuZn40Pb2 | 1 | 1 |
| 8 | Connecting Flag FP | CuZn40Pb2 | 1 | 1 |
| 9 | Spring Washer | A2 | 2 | 2 |
| 10 | Hexagon Screw | A2 | 2 | 2 |
| 11 | Ring Gasket J | NBR | 1 | 1 |
| 12 | Flat Gasket N | NBR | 1 | 1 |
