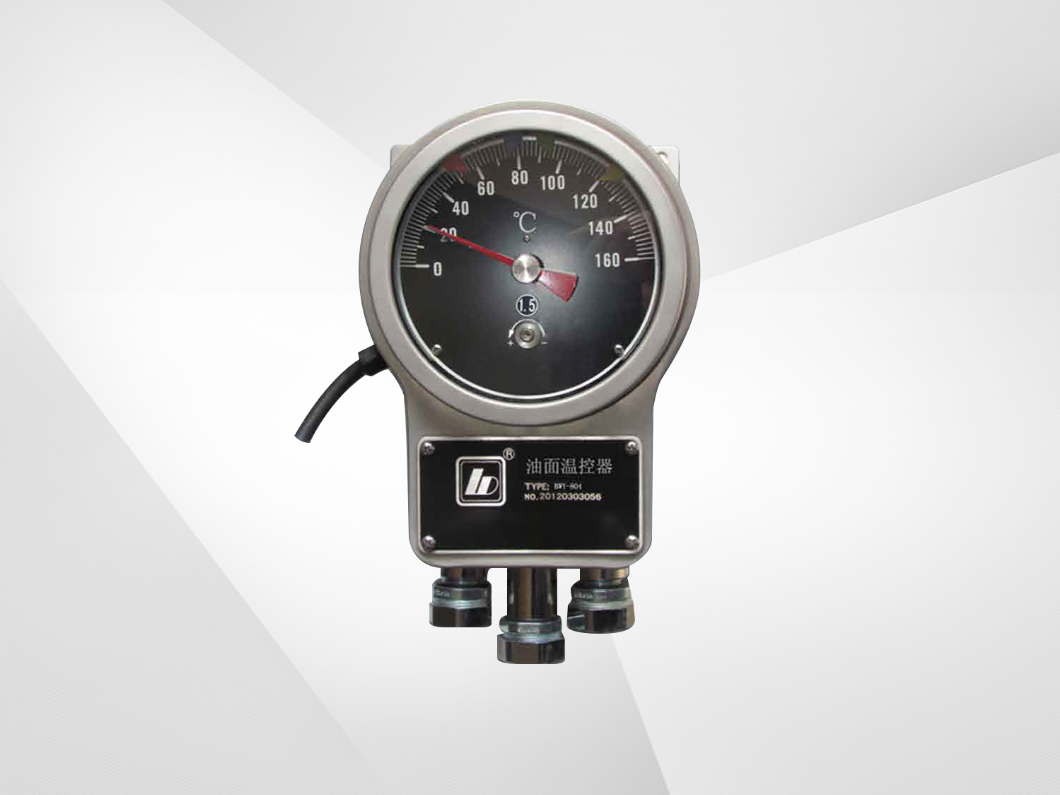

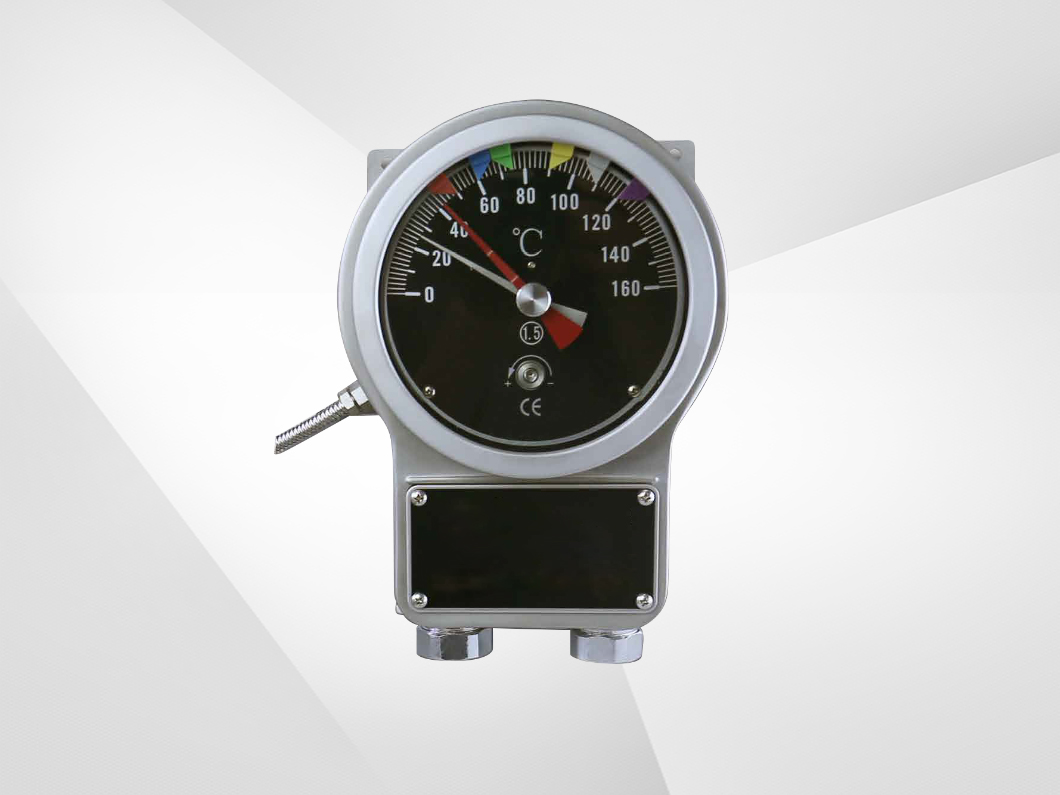

BWY-803 series oil level temperature controller
- Details
BWY-803 series oil level temperature controller uses a new generation of "multi-turn spring tube" as the driving element, the instrument greatly improves the temperature measurement accuracy and service life. All stainless steel material gram body can effectively protect the internal components from environmental impact and dirt invasion.
Description：
Technical parameters
I. Execution standard: JB/T 6302-2016
II. Ambient temperature:-50℃-+55℃
III. Range : 0-+160℃,-20℃~+120℃,0~160℃(Others should be customized)
IV. Protection class : IP65
V. Indication accuracy : 1.5 grade
VI. Setting accuracy: ±2℃
VII. Dial graduation value: 2℃
VIII. Return value of travel switch: ≤8℃
IX. Insulation withstand voltage: between contacts and contact to ground, 2kV/1min
X. Contact capacity: AC 250V/3A
XI. Factory temperature design value: K1 = 55℃, K2 = 65℃, K3 = 80℃.
XII. Junction box: Terminal should be able to access 1.5mm^2 cable.
XIII. Outlet hole thread: 2 or 3, can be connected to φ15 or φ20 inner diameter metal hose.
XIV. Warm Packet Threads:M27*2
XV. Overall dimensions:φ162mm*98mm
XVI. Shell color and material: Stainless steel natural color
XVII. Fastener material: stainless steel A4-70
XVIII. Capillary material: stainless steel, plus stainless steel jacket
XIX. Temperature package material: stainless steel 304
Product Model
Model | Capillary length/m | Dial Output Signal | Type | Warm pack form |
BWY-803 | 3 | / | compact | Simple Warm Bag |
BWY-803A | 3 | 1*PT100 | ||
BWY-803AA | 3 | 2*PT100 | ||
BWY-803D | 3 | 1*4~20mA | ||
BWY-803DD | 3 | 2*4~20mA | ||
BWY-803F | 3 | / | Combination | Used in conjunction with the PT-F15 transmitter |
Note：Capillary length (generally 3m、6m、9m),others can be ordered by need.
Our Advantage
* Cheap
* Customization acceptable
* Good accuracy
