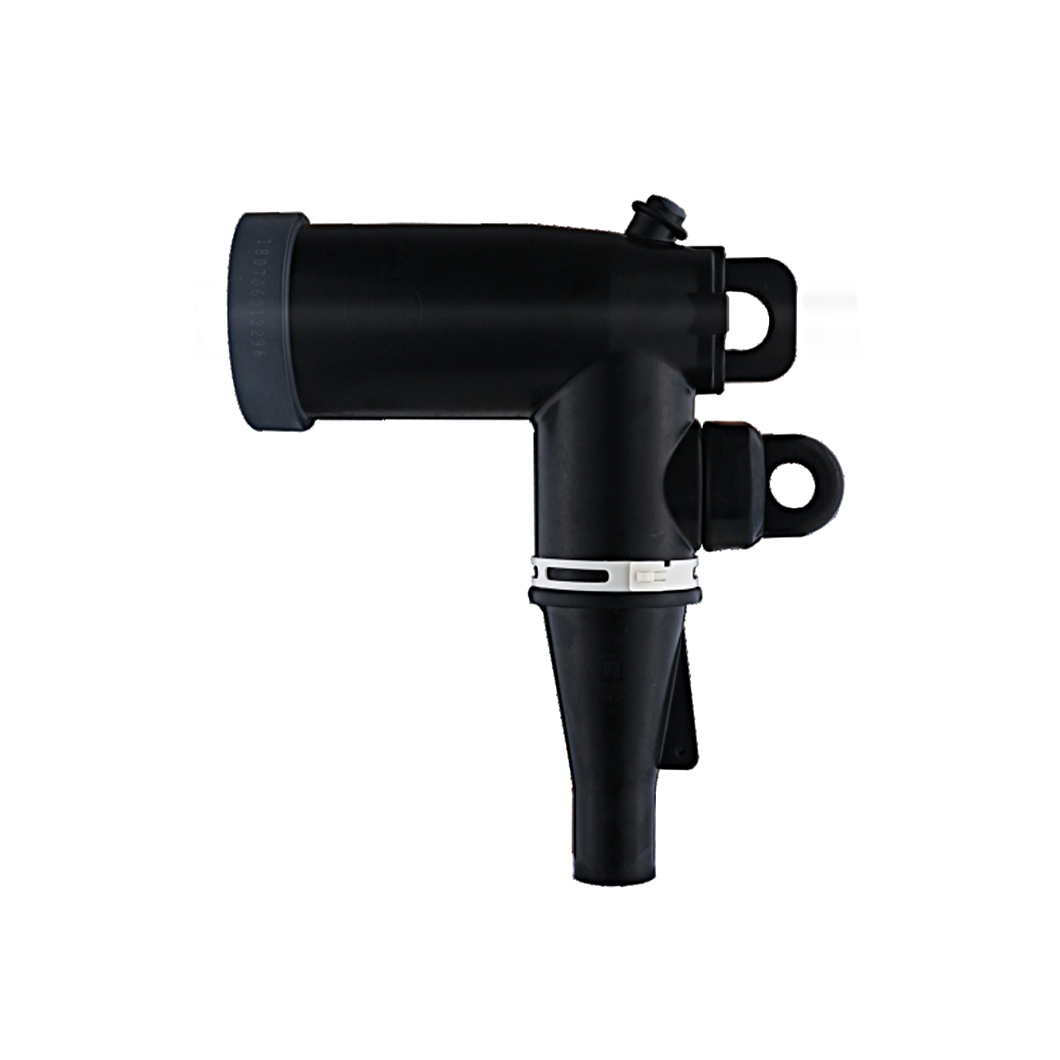

ZT 15kv 200A Loadbreak Elbow Connector
- Details
15kV / 200A elbow type cable connector is widely used in the connection of American box transformer, ring main cabinet, cable branch box, buried transformer and other electrical equipment. It is applicable to cross-linked polyethylene cables with 15kV cable section of 35mm2 ~ 150mm2 .

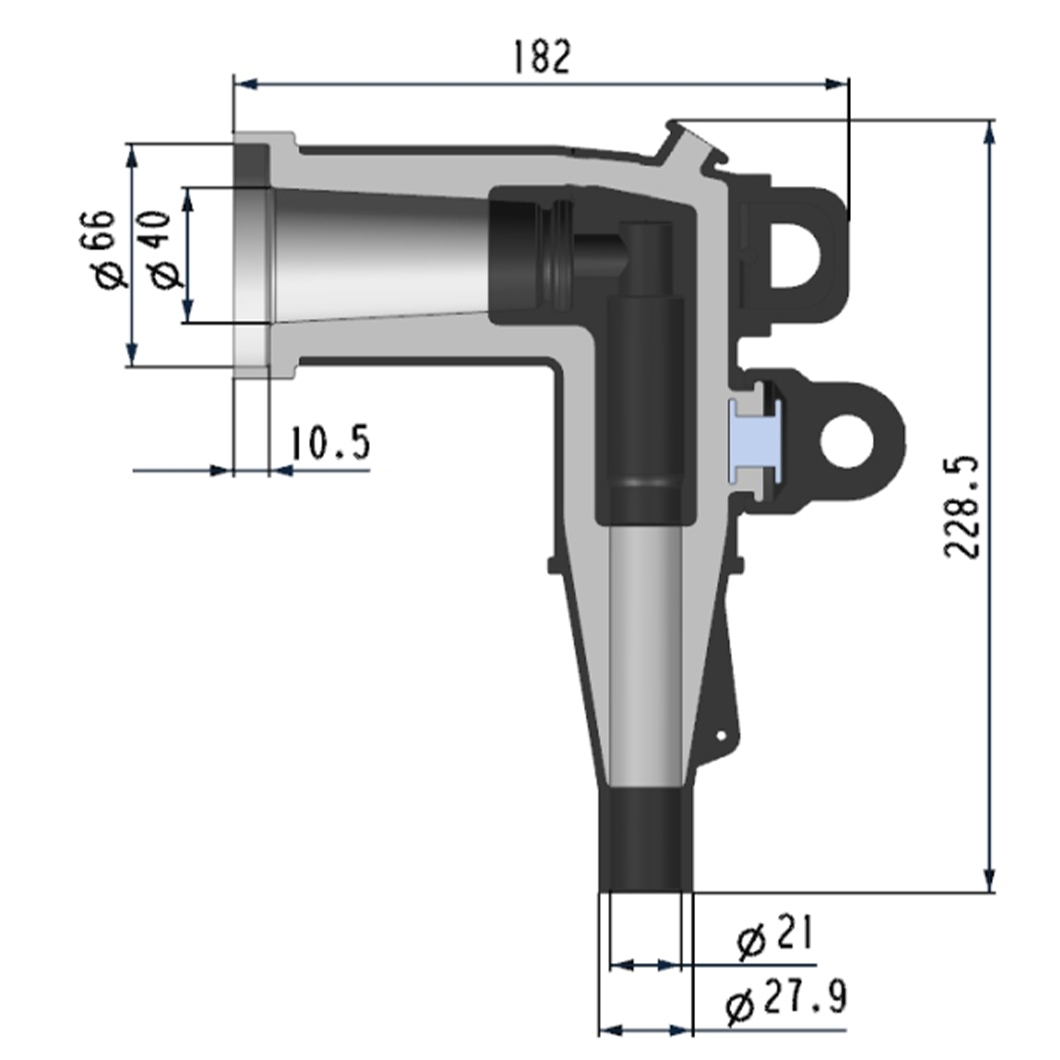

product structure：
Operating ring
Insulation
Inner semiconductor layer
Voltage test point
Outer Semiconducting Layer
Arc suppression insertion rod
Crimping terminal
| order number | Cable cross-sectional area/mm2 | Conductor diameter/mm | Cable insulation outer diameter/mm |
| NRZT-15/200-35 | 35 | 7.0-7.5 | 17.0-19.0 |
| NRZT-15/200-50 | 50 | 8.0-8.5 | 18.0-20.0 |
| NRZT-15/200-70 | 70 | 9.8-10.0 | 20.0-21.4 |
| NRZT-15/200-95 | 95 | 11.4-11.7 | 21.6-23.1 |
| NRZT-15/200-120 | 120 | 12.8-13.2 | 23.0-24.6 |
| NRZT-15/200-150 | 150 | 14.2-14.7 | 24.4-26.1 |
Packaging accessries：
Elbow connector 3 pcs
Test point cap 3 pcs
White label clip 3 pcs
Common ground wire 3 sets
Conductive rod 3 pcs
Crimping terminal 3 pcs
L-shaped wrench 1 pc
Cleaning paper 6 packs
Silicone grease 2 pcs
Elbow cable ruler 1 sheet
Packing bag 1 copy
Instructions 1 copy
Certificate 1 copy
Inspection certificate 1 copy
