BHM 15kV 200A Insulation Sealing Cover
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details
15kV/200A insulation sealing cover provides insulation envelope for live bushing and dust-proof and moisture-proof envelope.When spare outgoing line is reserved for bus bar and cable joint, it must be sealed with 200A insulation cap.

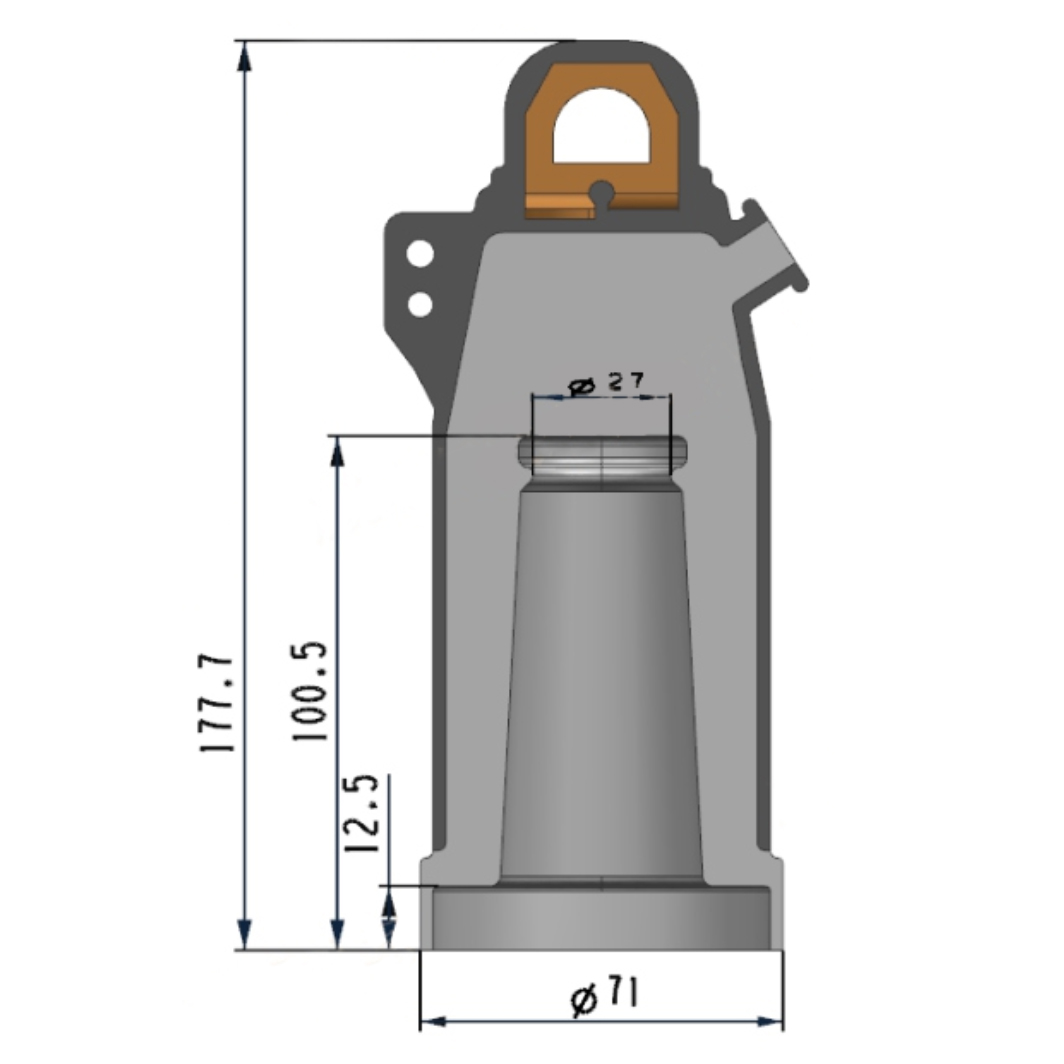

product structure：
Iusulation
outer semiconducting layer
ground wire
Operating ring
| order number | Cable cross-sectional area/mm² | Conductor diameter/mm | Cable insulation outer diameter/mm |
| NRBHM-15/200-35 | 35 | 7.0-7.5 | 17.0-19.0 |
| NRBHM-15/200-50 | 50 | 8.0-8.5 | 18.0-20.0 |
| NRBHM-15/200-70 | 70 | 9.8-10.0 | 20.0-21.4 |
| NRBHM-15/200-95 | 95 | 11.4-11.7 | 21.6-23.1 |
| NRBHM-15/200-120 | 120 | 12.8-13.2 | 23.0-24.6 |
| NRBHM-15/200-150 | 150 | 14.2-14.7 | 24.4-26.1 |
Packaging accessries：
Insulation Cap 3 pcs
Common grounding wire 3 sets
Silicone grease 1 pc
Cleaning paper 3 pack
Installation instructions 1 pc
Product certificate 1 pc
packing bag 1 set
inner and outer packing boxes 1 set
