MP 15kV 200A Loadbreak Junctions
If you are interested in our products or need technical supports and service,please contact us as bellowing:
- Details

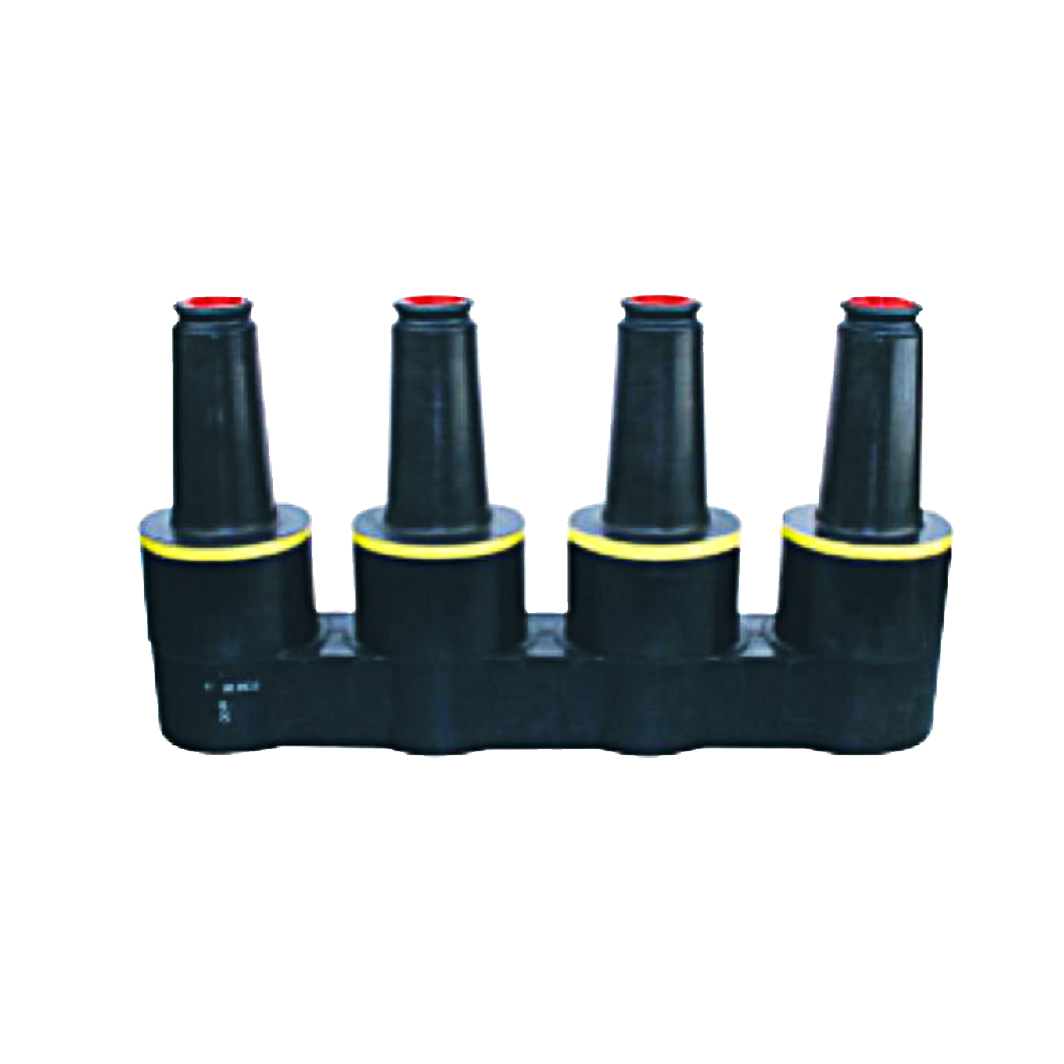

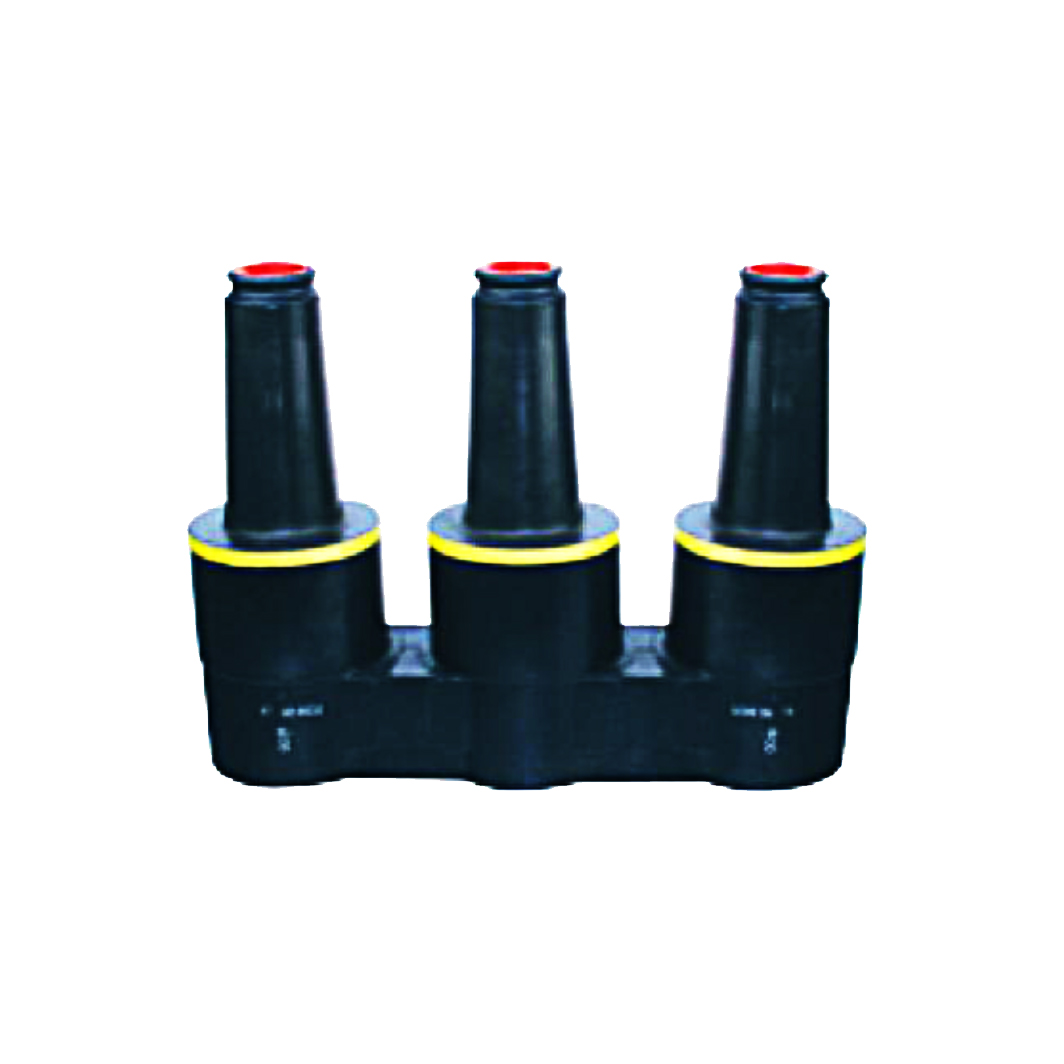

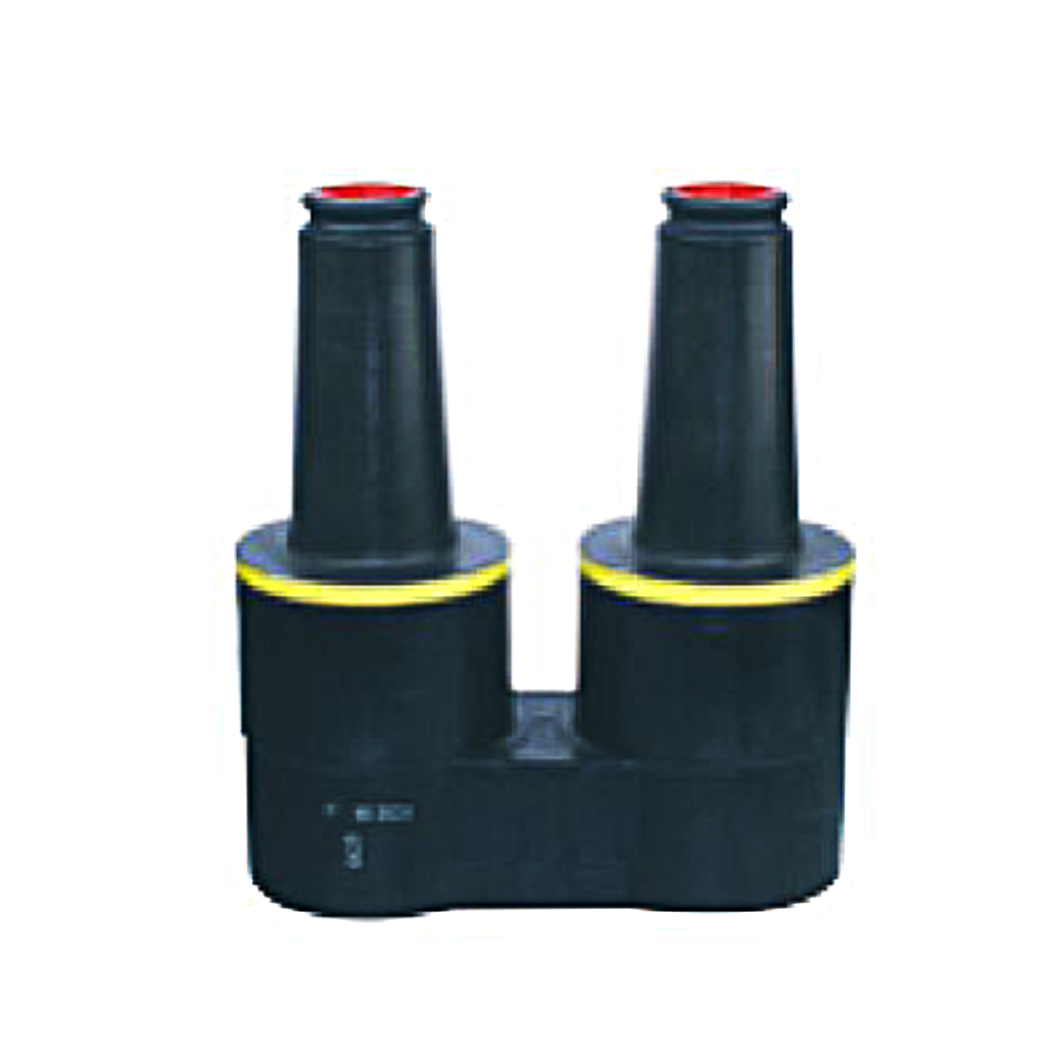

200A Loadbreak junctions are used in pad-mounted apparatus,underground vaults,and other apparatus to sectionalize, establish loops, taps,or splices, and to facilitate apparatus changeouts.Sectionalizing a cable run to find and isolate a cable fault is made easy when a loadbreak junction is used with 15 kV Class loadbreak elbows.When mated with a comparably rated product,the junction provides a fully shielded, submersible , separable connection for loadbreak operation.The body is molded of high quality EPDM.
| Reference No. | Continuous operating voltage | Continuous nominal current | ||
| TC MP2-15/600 | 15kV | 600A | ||
| TC MP3-15/600 | 15kV | 600A | ||
| TC MP4-15/600 | 15kV | 600A | ||
| TC MP2-25/600 | 25kV | 600A | ||
| TC MP3-25/600 | 25kV | 600A | ||
| TC MP4-25/600 | 25kV | 600A | ||
