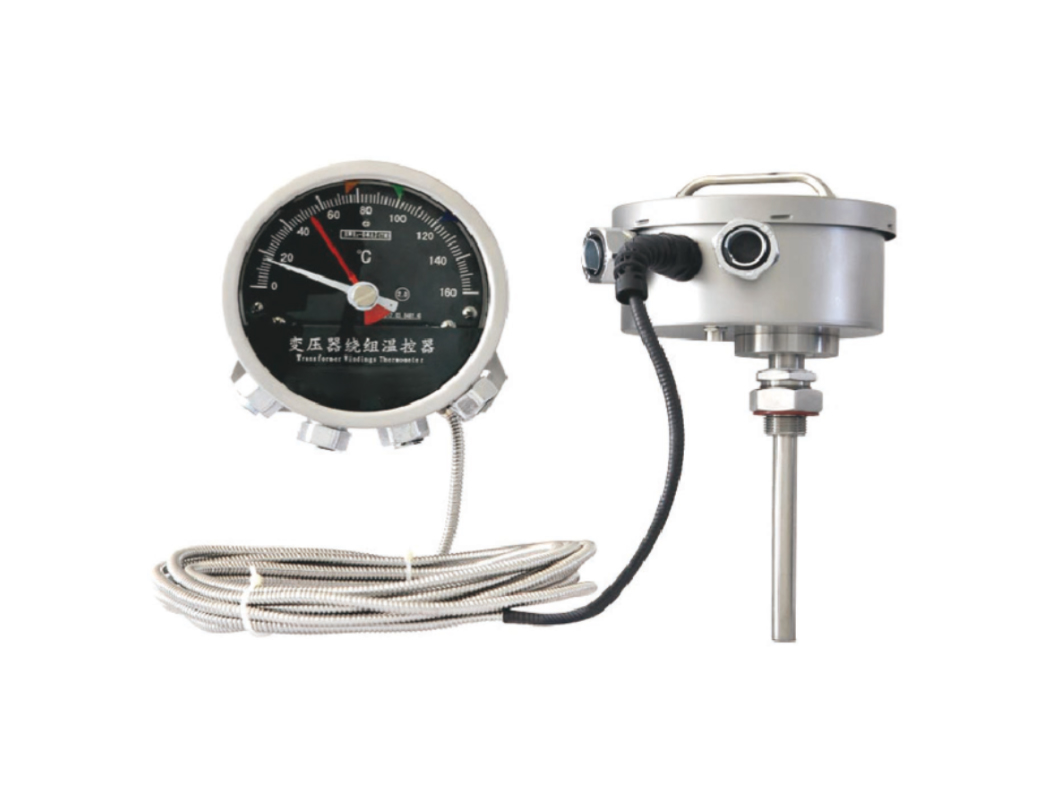

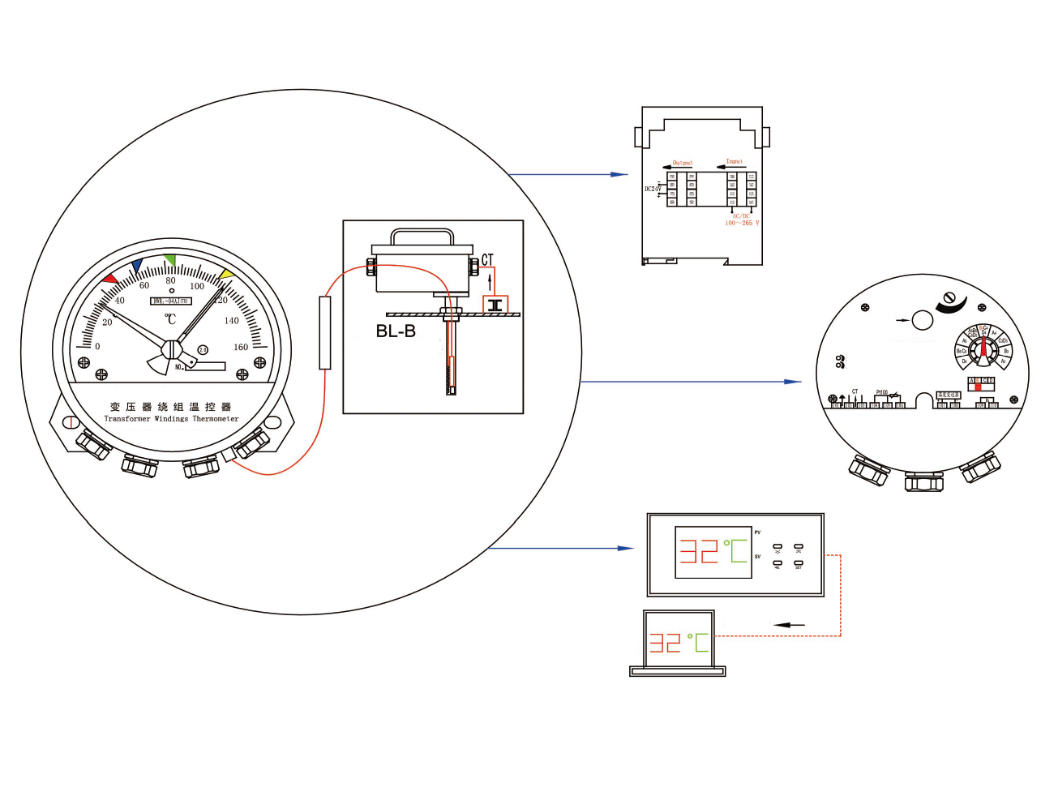

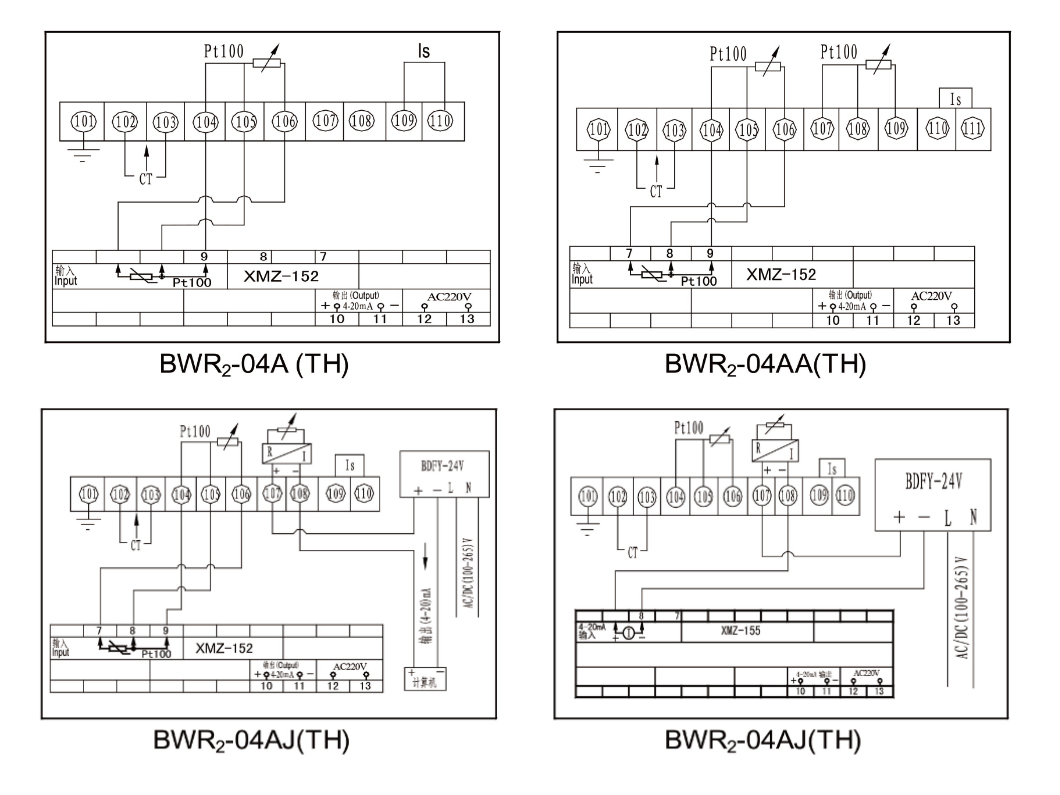

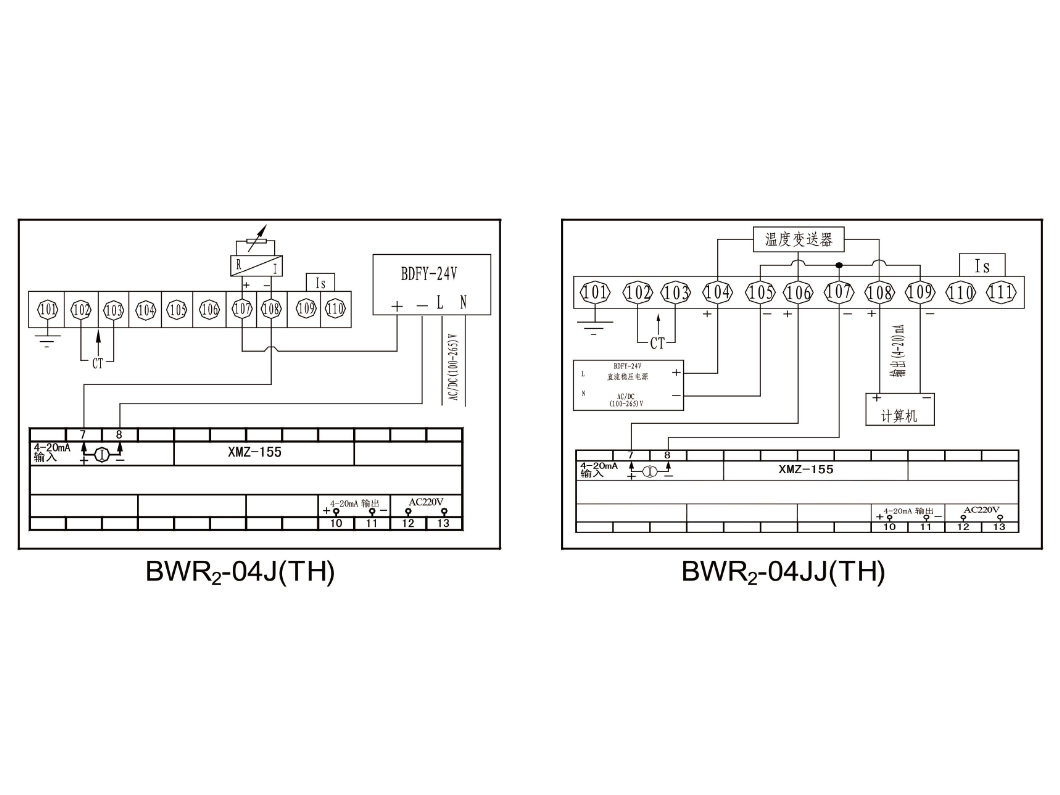

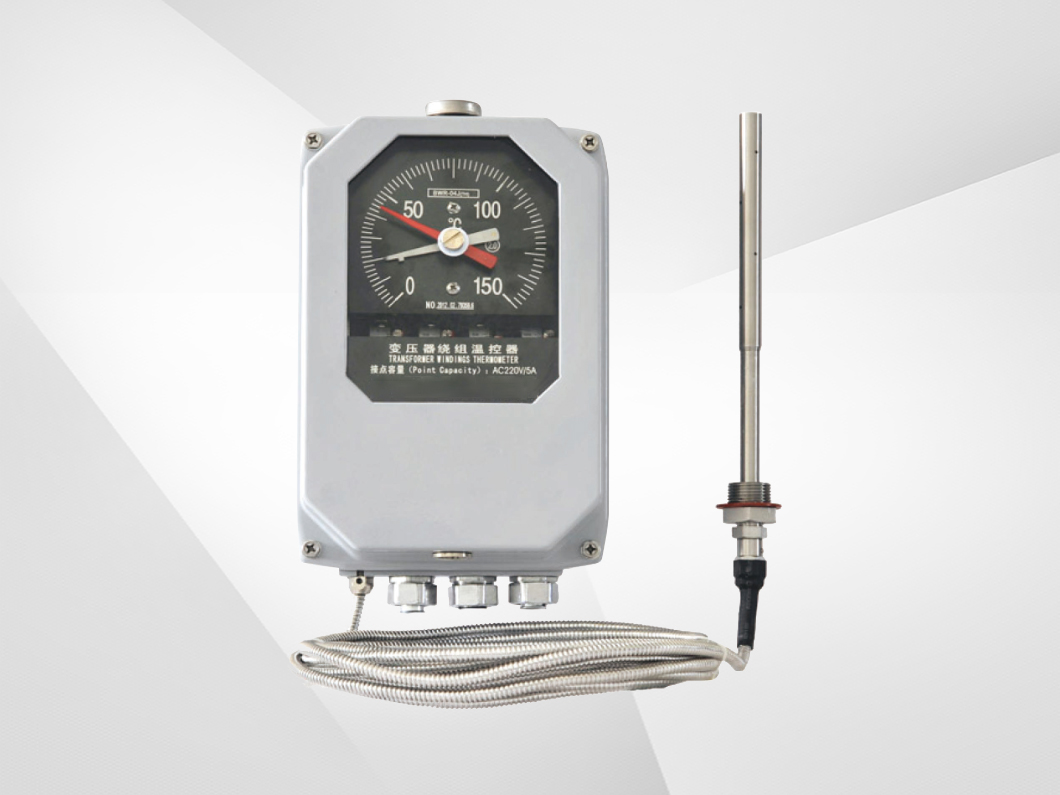

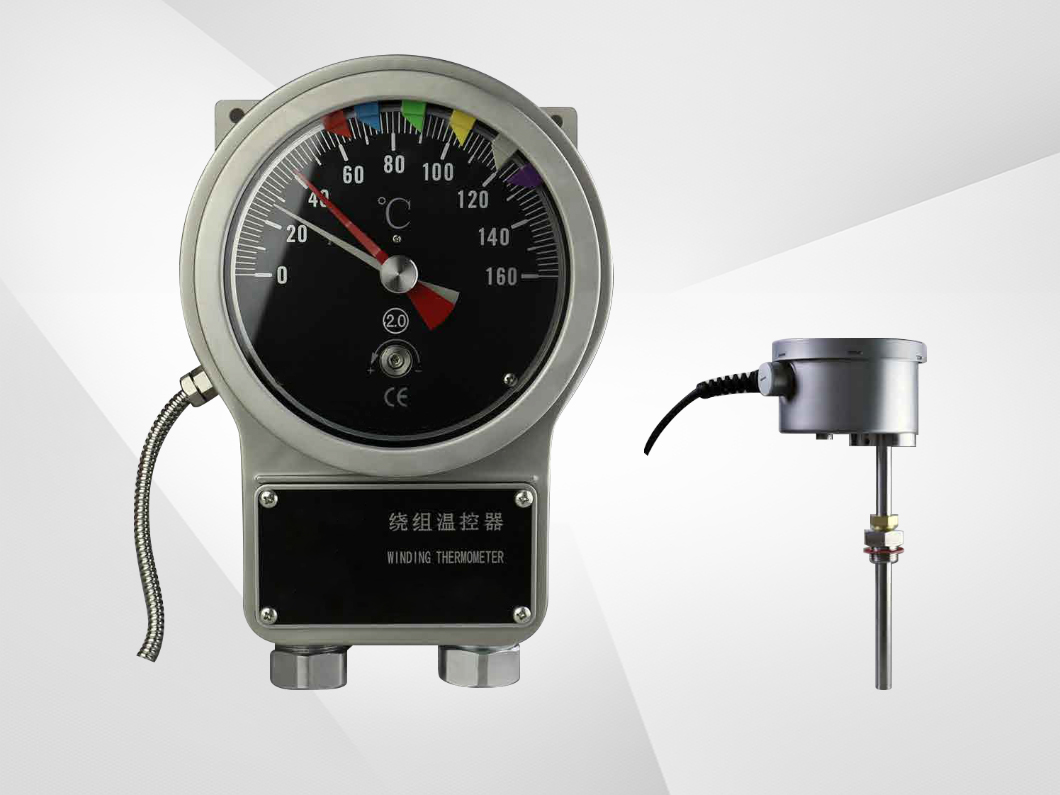

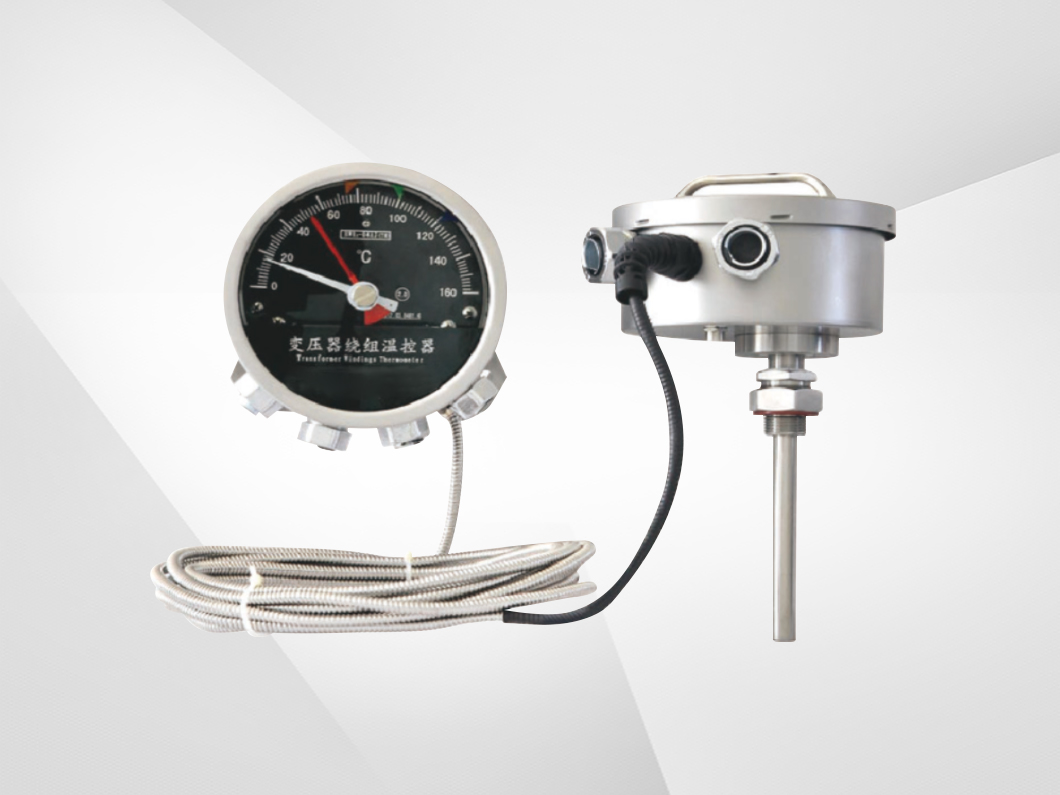

BWR₂-04 (TH) series Transformer winding thermometer is a special instrument designed for transformers by adopting the principle of additional temperature rise. The instrument has good protection performance, can work normally in outdoor conditions, can be widely used in transformers and other equipment temperature detection and control. The instrument is equipped with four to six adjustable control switches, which can be used for transformer cooling system control and signal alarm, over-temperature tripping and so on. Through embedded in the BL-B (TH) transmitter temperature transmitter or Pt100 platinum resistance, output and temperature value corresponding to the DC (4-20) mA current signal or Pt100 platinum resistance signal, for computer systems and secondary instrumentation, to achieve unmanned power station management.

Description：

Technical parameters

I. Working conditions: ambient temperature (-40~+50)℃, relative humidity ≤95%RH

II. Measuring range: (0~160)℃

III. Accuracy: 2.0 grade (according to standard JB/T8450-2016)

IV. Switching performance: four adjustable switches (up to 6 groups according to user requirements)

V. Switch action point: K1=50℃, K2=75℃, K3=100℃, K4=120℃.

VI. Switch rated power: AC220V/5A

VII. Temperature package size: φ15, insertion depth not less than 150mm

VIII. Installation thread: (M27x2)mm or (M33x2)mm

IX. Capillary length: 6m

X. Protection grade: IP55

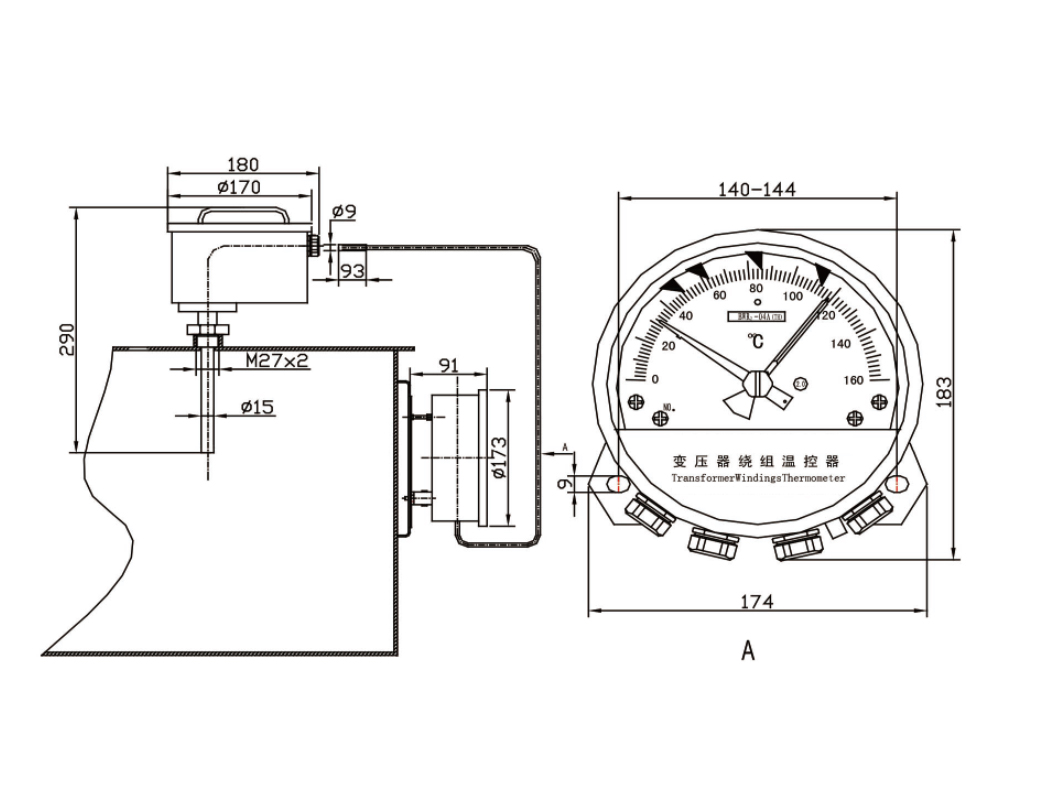

XI. Product installation size chart:

Note: The above technical descriptions are all standard settings for our products, if customers have special requirements for measuring range, switching action points, installation dimensions, etc. can be customized according to customer needs.

Our Advantage

* Cheap

* Customization acceptable

* Good accuracy
